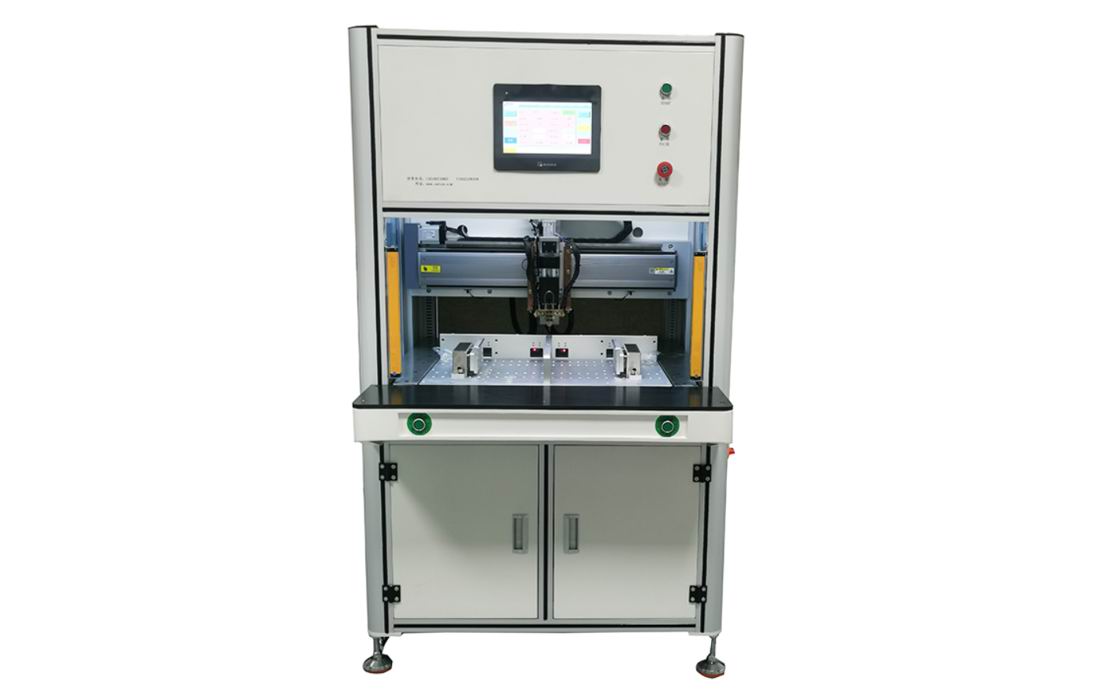

6 Single Sided Automatic Battery Welder SDPA-10000SD

Single Sided Power Automatic Spot Selding Machine SDPA-10000SD

Advanced Intelligent Type

（Click to watch video: Single sided automatic cylindrical battery pack welder 1）

（Click to watch video: Single sided automatic cylindrical battery pack welder 2）

Equipment characteristics

●Equipped with an industrial control computer host and a motion control card, displayed on a 19 inch LCD computer monitor.

●The machine head spot welding has a rotating function to prevent needle sticking and facilitate spot welding of special-shaped split nickel sheets.

●The MIYACHI type precision spot welding follow-up mechanism can be equipped with pressure sensors, making the spot welding coefficient more precise and reliable, and the welding effect more stable.

●Real time collection, automatic saving, and generation of EXCEL files for spot welding and pressure data, facilitating quality tracking;

●Import servo motor and precision linear module guidance ensure precise welding, stable and durable displacement.

●Suports arbitrary dot matrix and standard array modes, with CAD mapping function, and stores 99 sets of welding programs;

●Has functions such as continuous start, breakpoint start, virtual soldering, solder leakage alarm, and repair soldering:

●The welding power supply comes with a built-in current monitoring function, which can monitor the actual output current in real time;

●Adopting duplex position conversion operation, the fixture is in place induction start, improving production efficiency.

●Has a fixture in place induction start function, and the fixture spot welding starts in place without the need for a button, further improving efficiency.

●Install safety light barriers on the 11 operation platform to ensure the safe operation of operators.

●The appearance design is generous, the manufacturing is excellent, the sports structure rigidity is good, and the welding accuracy is guaranteed to be stable for a long time.

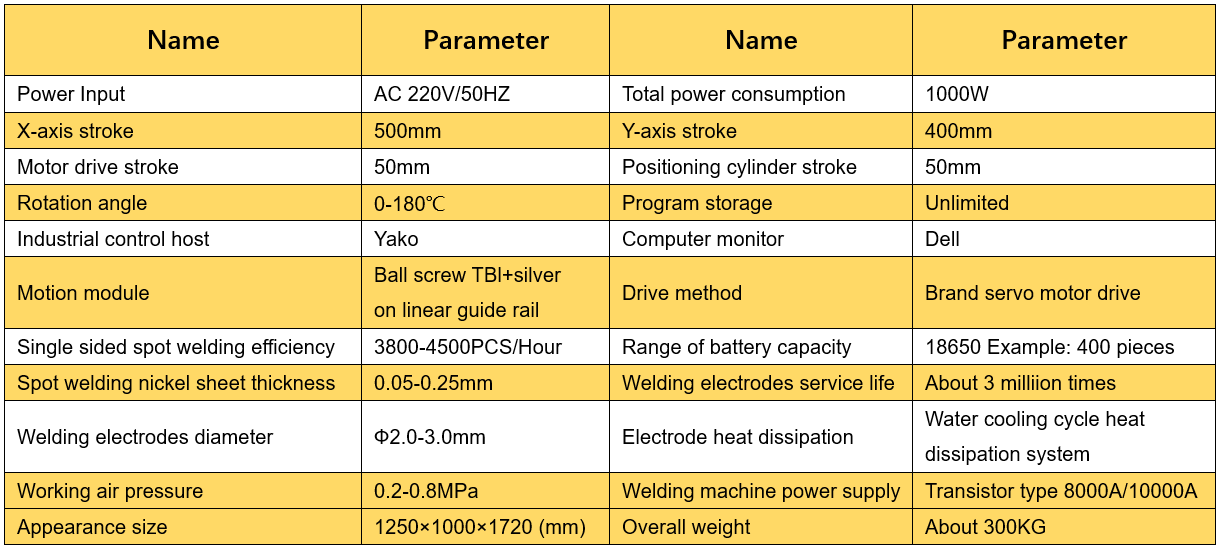

Main parameters
