SDI-5000A Inverter DC Spot Welder

The precision inverter DC welding power supply and precision spot welding heads produced by our company are primarily used in the high-quality welding production and manufacturing of electronic components such as power battery assembly, motor rotor, commutator, motor brushes and wiring harnesses, automotive wiring harnesses, automotive coil terminals, enameled wire, induction IC card chips, high-frequency communication components, aerospace components, medical equipment, sensors, household appliances, relays, chip inductors, as well as various sheet metal, wire, silver contacts, platinum wire, and other non-ferrous metals.

(Click to watch video: Copper Terminals & Pins Spot Welding 1)

(Click to watch video: Electric Motor Wires Spot Welding 2)

(Click to watch video: Electric Motor Wires Spot Welding 3)

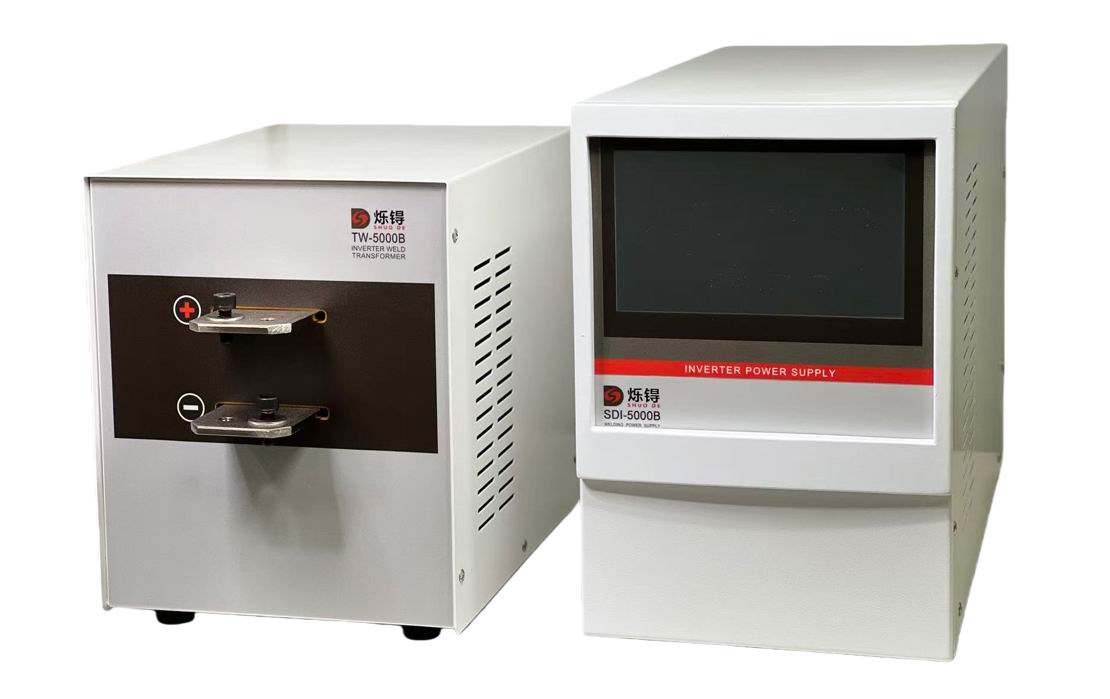

SDI-5000A Inverter DC Welding Power Supply

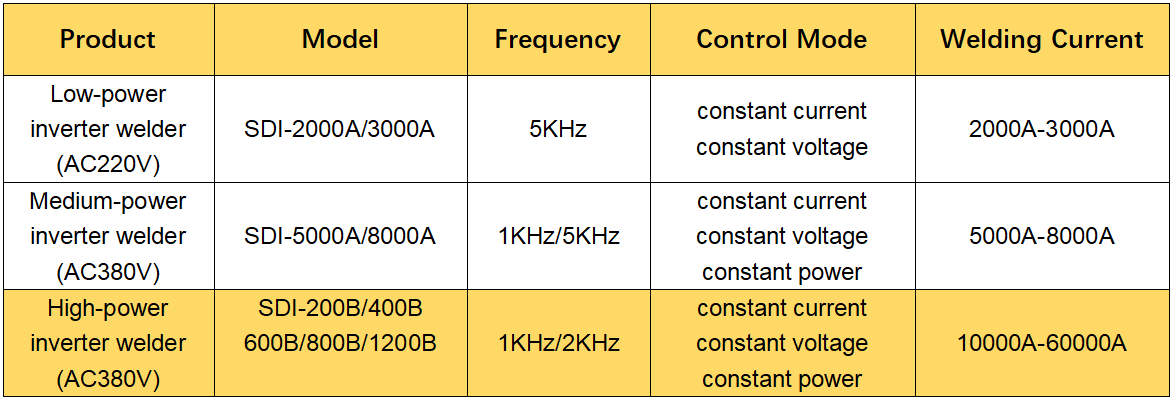

SDI Series Resistance Inverter DC Welding Power Supply

● 6 control modes: pulse width constant current, secondary constant current, constant voltage, current voltage mixed control, current power mixed control.

● Simultaneously monitor and display the current, voltage, power, and resistance during the welding process in real-time.

● 31 sets of welding schedules can be set and stored

● Maximum simultaneous power on switching function for 5 transformers

● The maximum number of welding power pulses is 10 times

● Pre power detection function

● Built in displacement monitoring unit

● External interrupt function

● 10 level upgrade function

● Real time dynamic list displaying the last 10 spot welding parameters

● Standard RS-232/485 communication function

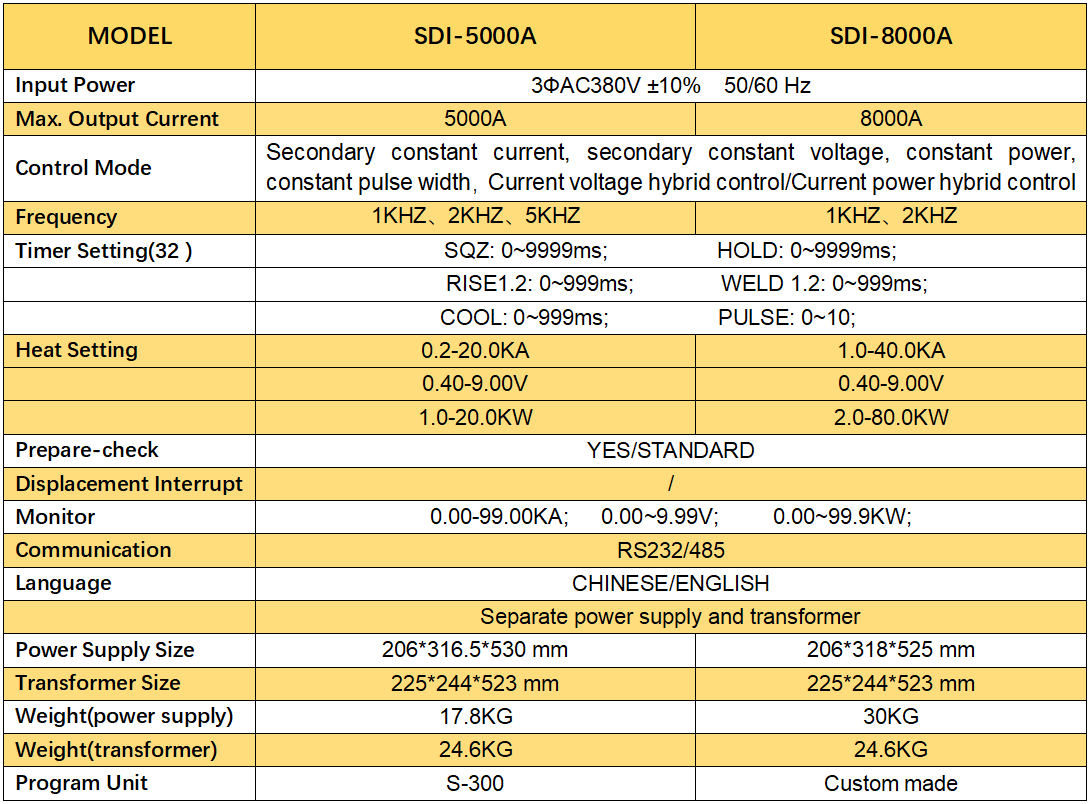

SDI Series Inverter DC Welding Power Supply Technical Parameters

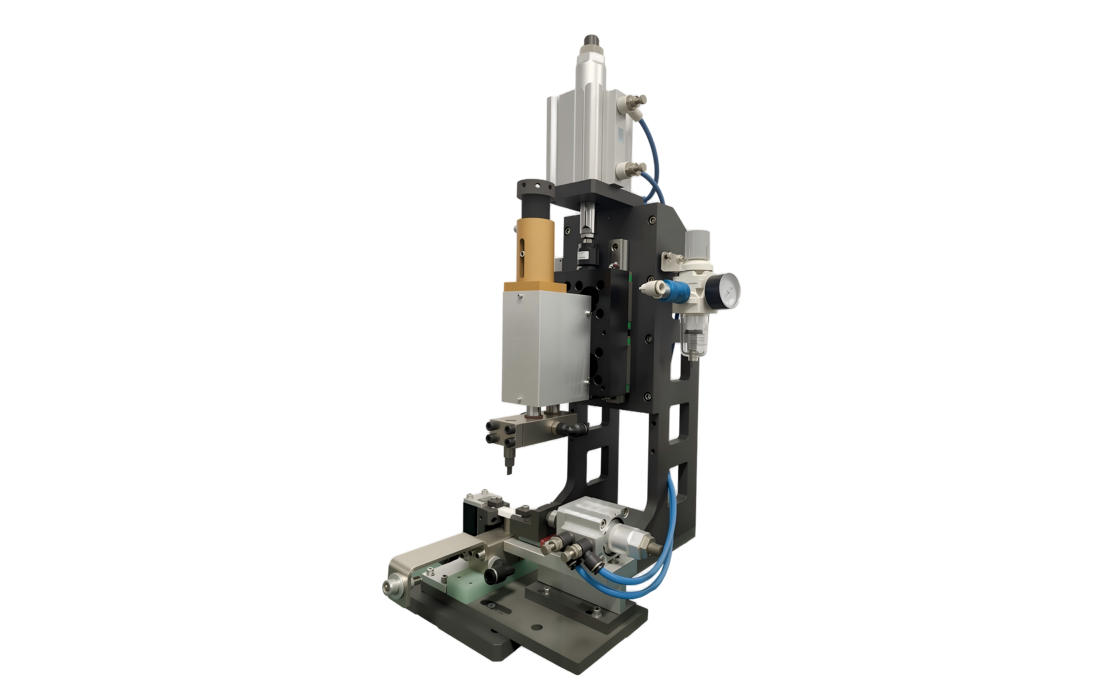

WH-63Y Wires & Terminals Spot Weld Head  (air cylinder driving, big pressure)

The precision opposite electrodes spot welding head is mainly used in industries such as electronic components, automotive parts, medical instrument parts, lithium batteries, etc. It achieves precise welding of metal connecting pieces through the principle of resistance welding. The following are key information points:

Application

●Welding of fine components such as silver connectors, wires to wires, copper wires and resistor pins of electronic switches to avoid damage to components due to high temperature or high current.

●Welding automotive wiring harnesses, battery nickel sheets, etc

●Spot welding of enameled wire, non-ferrous metal materials such as copper and aluminum, alloy materials, precision parts, and high-quality products.

●Spot welding in the manufacturing of household appliances, sheet metal processing, microelectronics, and other fields.

Technical Features

●The machine head is manufactured by using precision CNC equipment, and the frame is made of aluminum profiles for easy disassembly and assembly.

●The linear bearing design inside the spot welding head ensures the accuracy and repeatability of welding.

●The electrode pressure can be adjusted to adapt to different wire diameters and thicknesses, improving welding quality.

●Automated production line configuration, some models are equipped with conveying devices, servo motors, and modular clamping structures to achieve precise positioning and efficient production.

●The independent welding head is connected to welding power sources such as AC/DC energy storage transistors through welding cables, and can achieve single pulse, double pulse, and multi pulse welding, making the operation more personalized.

Welding wire diameter range: 0.02-1.50mm.

The thickness range of the welded metal sheet is 0.01mm-0.80mm.

Maintenance Recommendations

Regularly sand the welding head with fine sandpaper to remove the oxide layer and avoid empty welding or short circuit operations to extend the service life.
