Electronic Components

Electronic Components Spot Welding

In the field of electronics and microelectronics, many components in consumer electronics and industrial electronics manufacturing are small in size, have precise structures, and are extremely sensitive to welding deformation.

ShuoDe Weld TECH precision inverter DC spot welding machine has high power output accuracy, good repeatability, and strong controllability, which helps ensure the reliability and consistency required for high-performance electronic components.

Typical application cases include the soldering of enameled wires, metal sheets, and chips in the electronics and microelectronics industries.

The welding of electronic components is mainly applied in the following three scenarios:

1. Enamel wire welding: suitable for welding single or multiple copper wires, silver wires, and gold wires with a wire diameter of 0.02-3.0mm, especially for the welding scene of inductor coil lead wires.

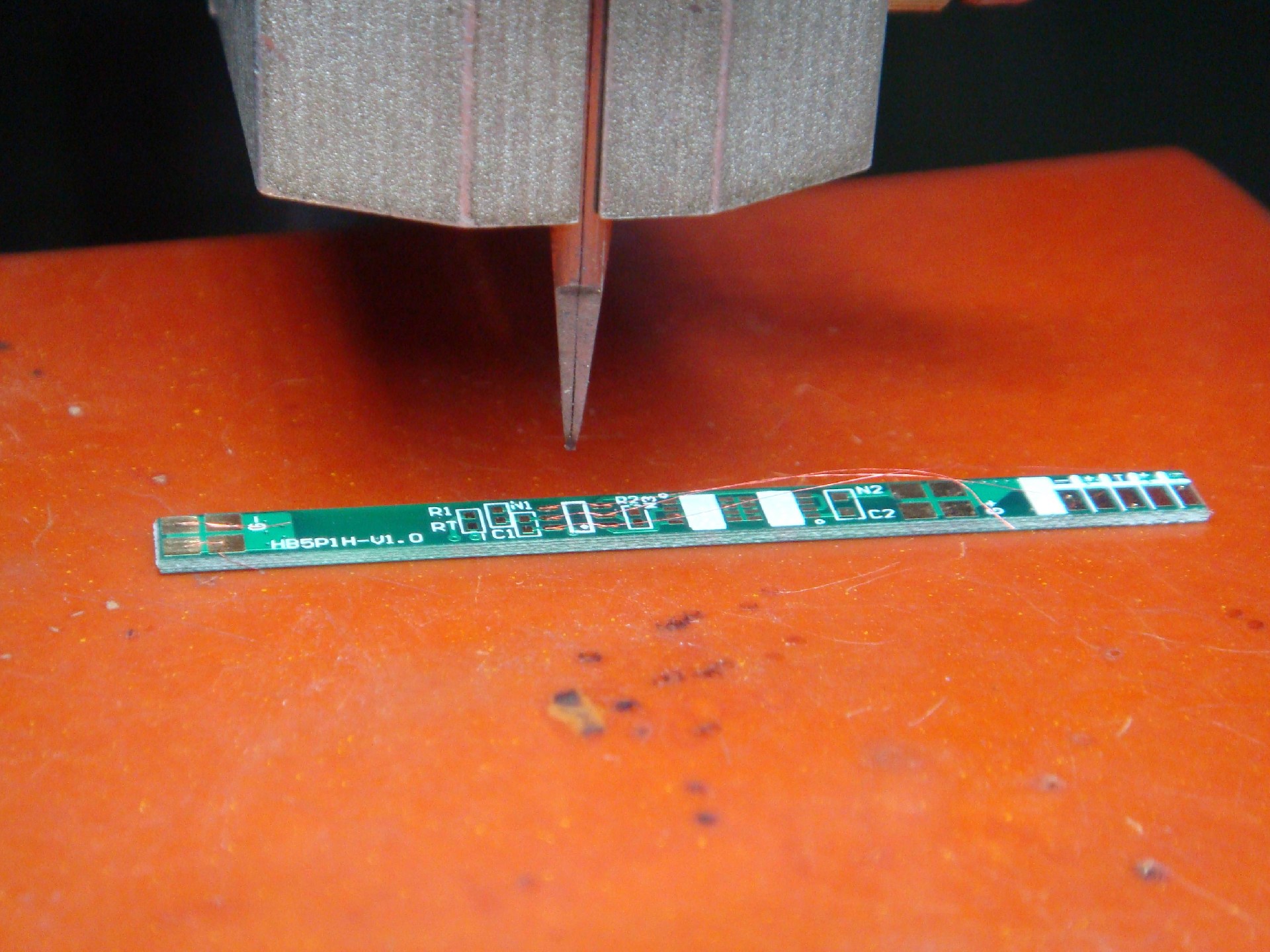

2. Chip packaging: used for direct soldering of IC chip pins to PCB boards, supporting 0.2mm pitch solder joint formation.

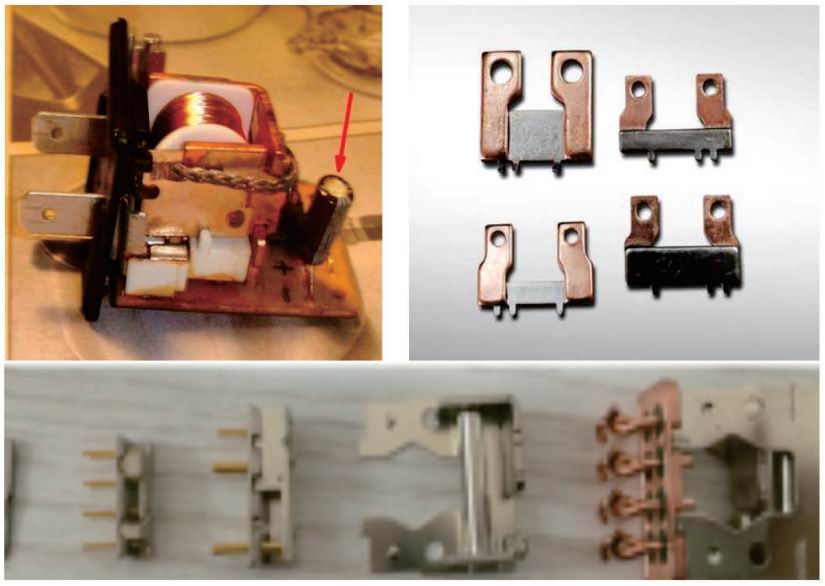

3. Precision component welding: capable of welding metal sheets with a thickness of 0.1-0.3mm, widely used in micro relays, sensors, high-frequency communication components, surface mount inductors, micro horn leads, aerospace, medical equipment and other fields.

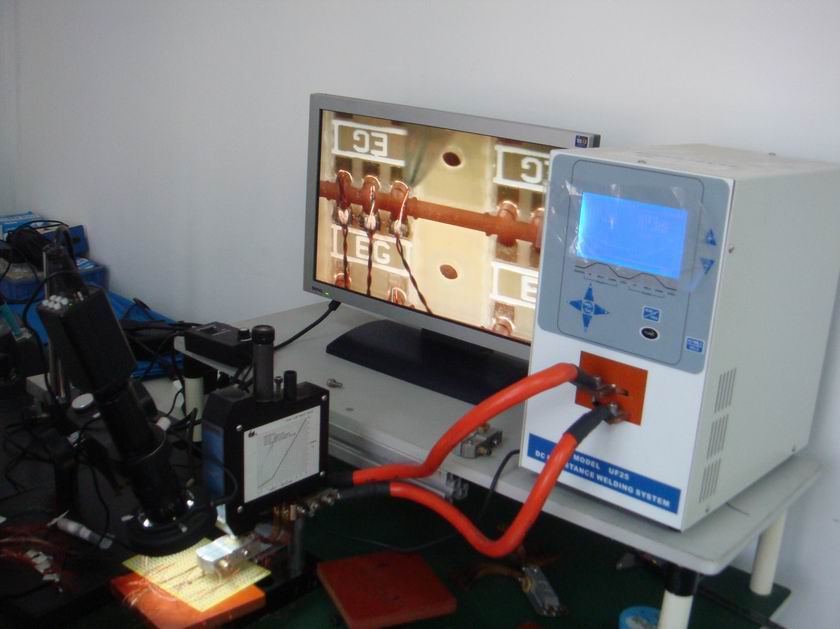

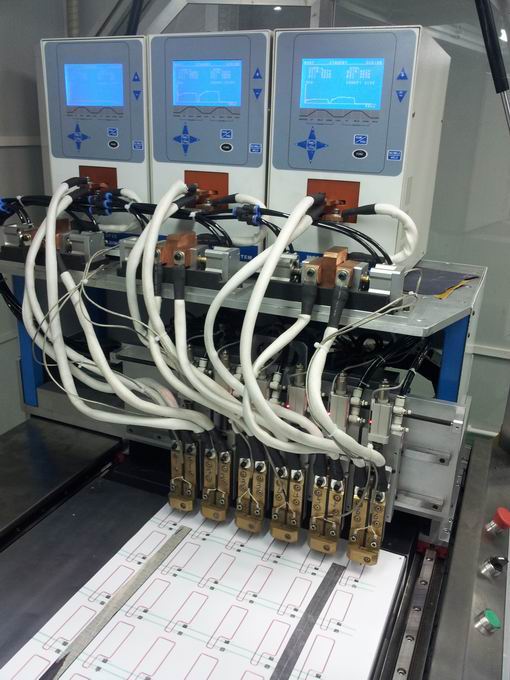

IC Card Chip Coil Wires Automatic Spot Welding Machine,

with Inverter DC Weld Power Supply.

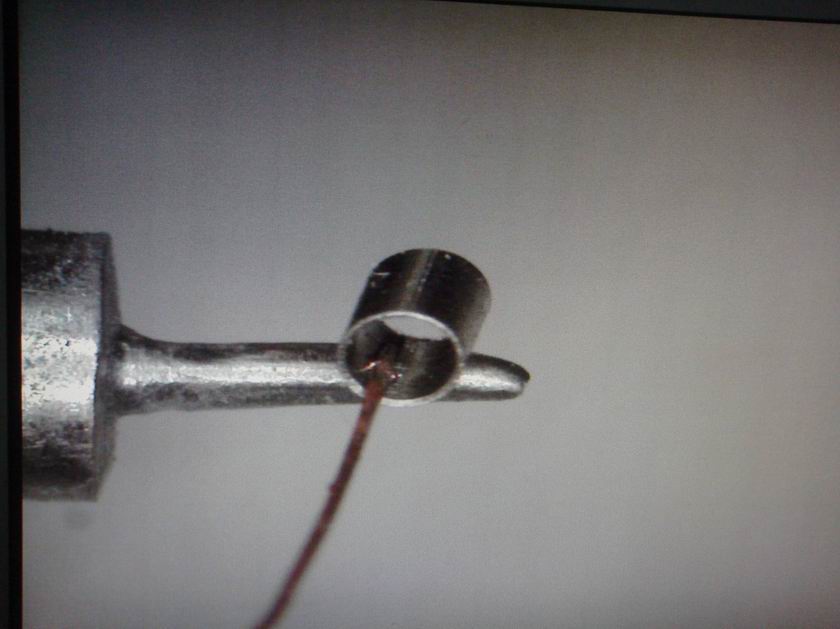

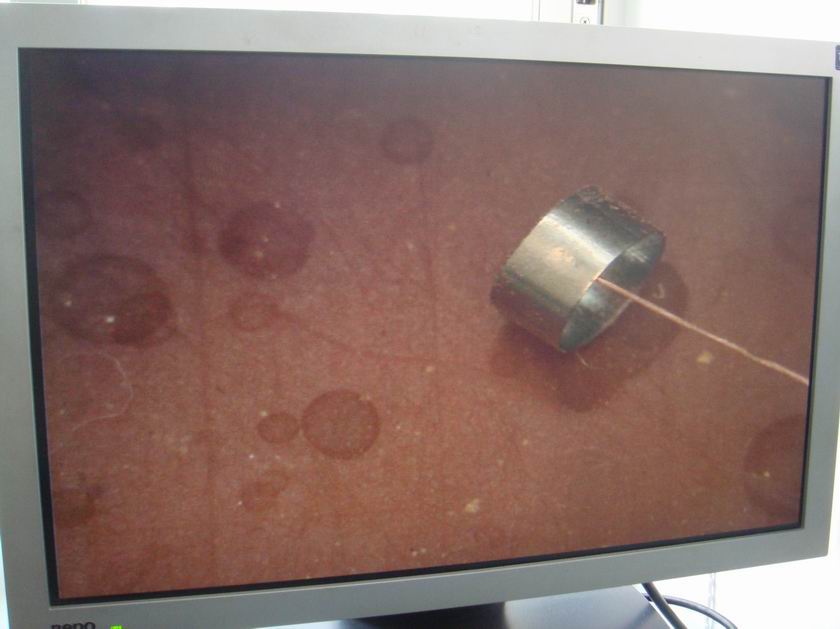

Enamel wire weld stainless steel ring

Wire weld capacitor

.

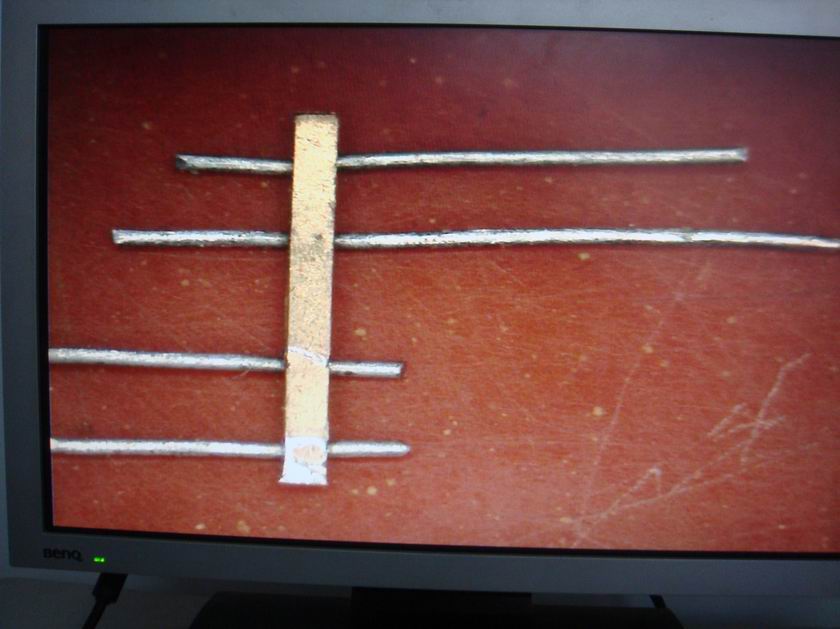

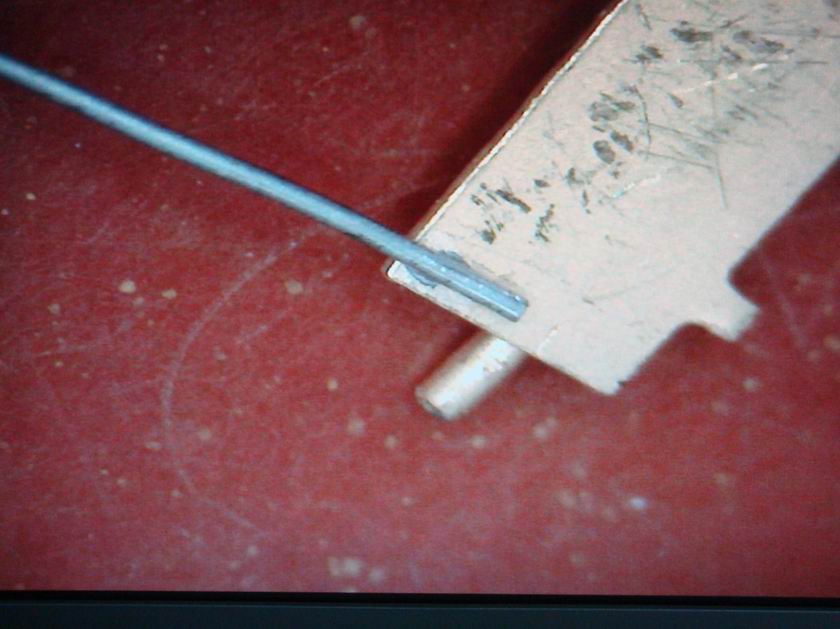

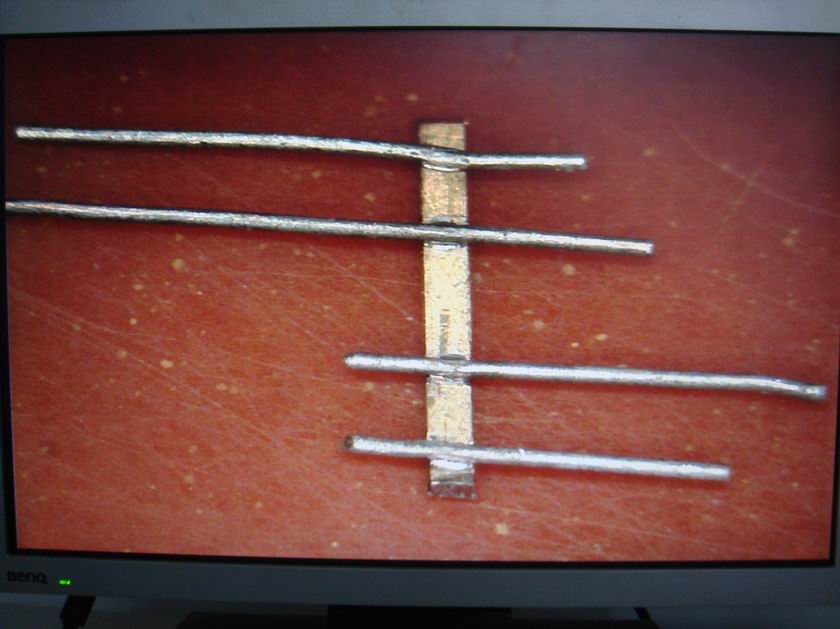

0.25mm copper plated tin wire weld 0.52mm thick copper plated gold terminal.

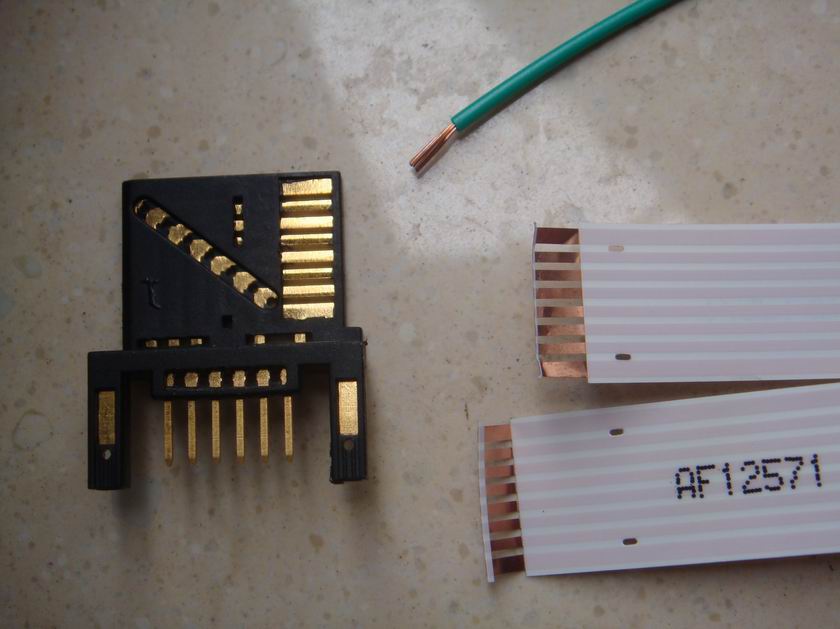

Telecommunications components. Welding is firm and the wire does not deform.

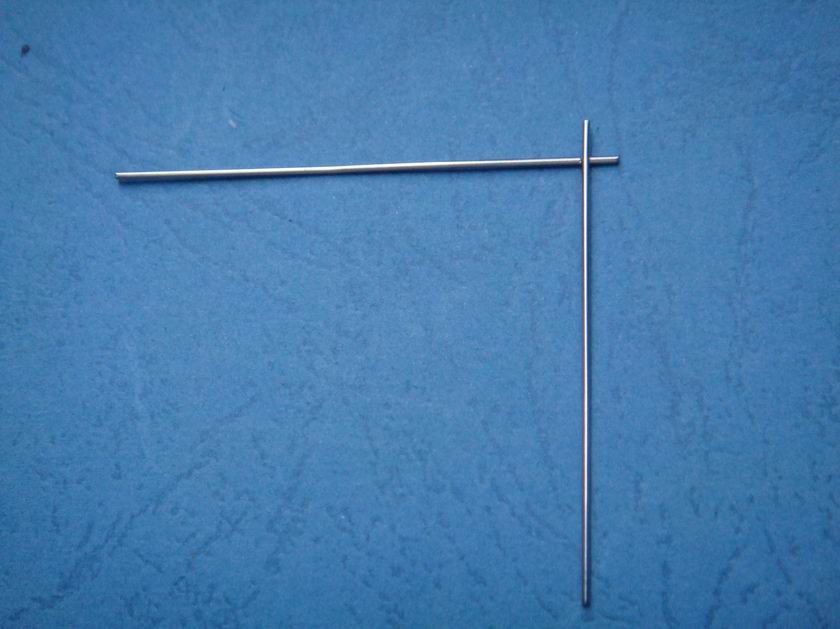

Camera flash nickel rod welding

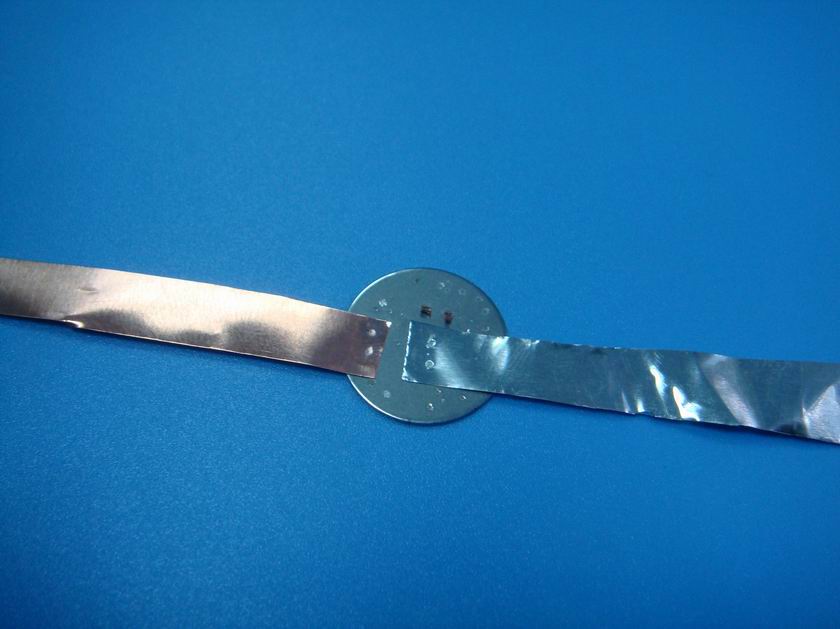

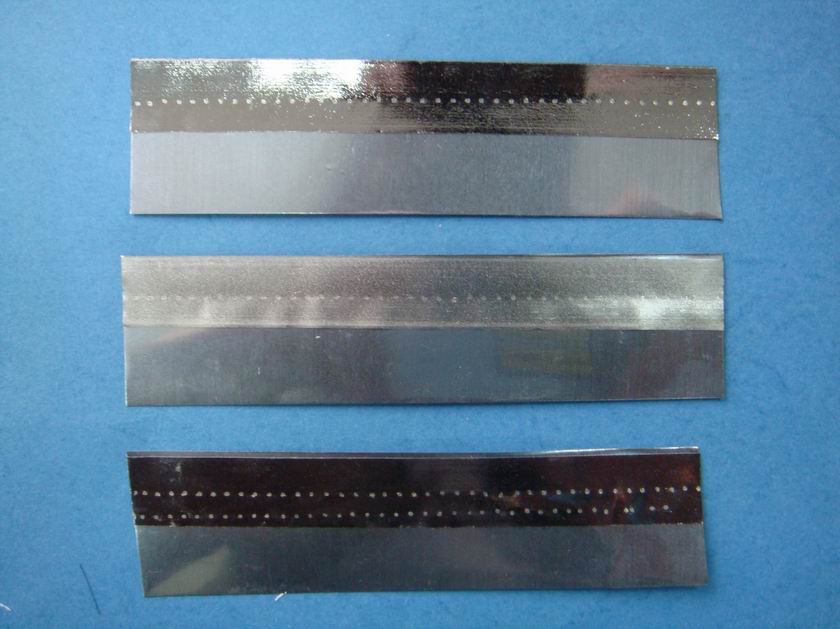

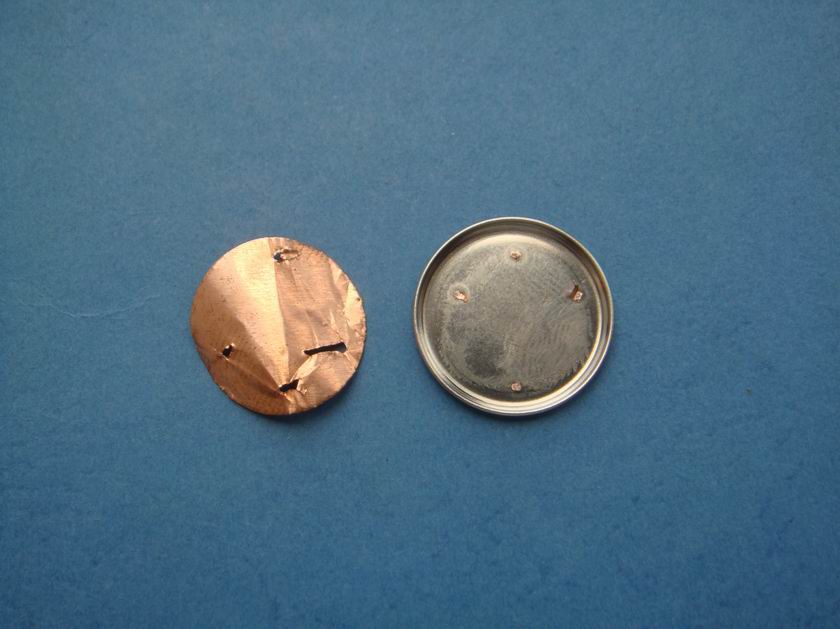

Copper foil, aluminum foil, weld stainless steel

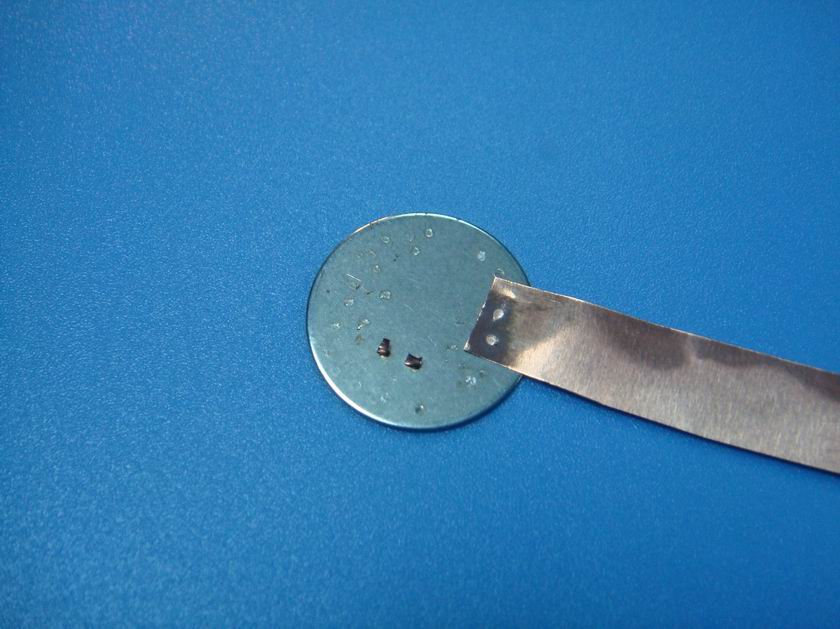

Aluminum foil, weld stainless steel.   Resistance Rolling Spot Welding

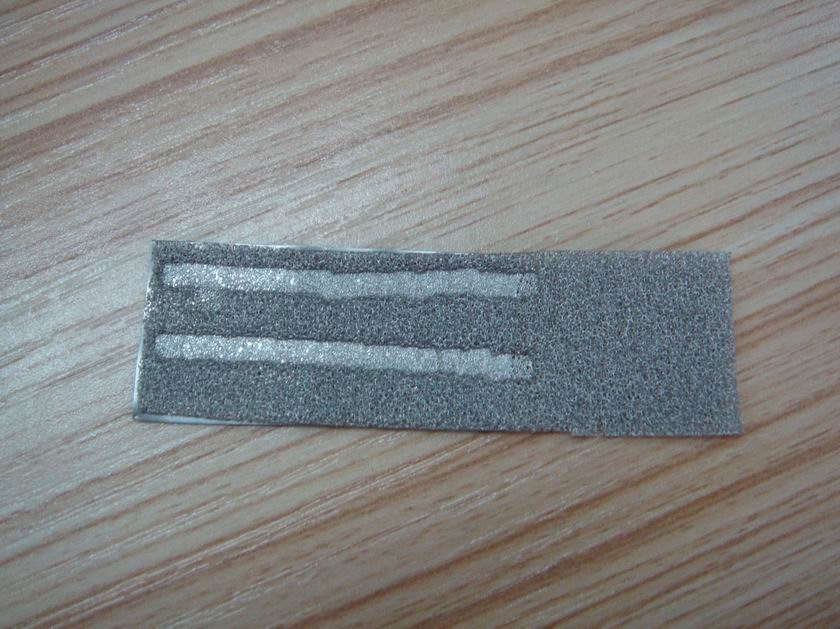

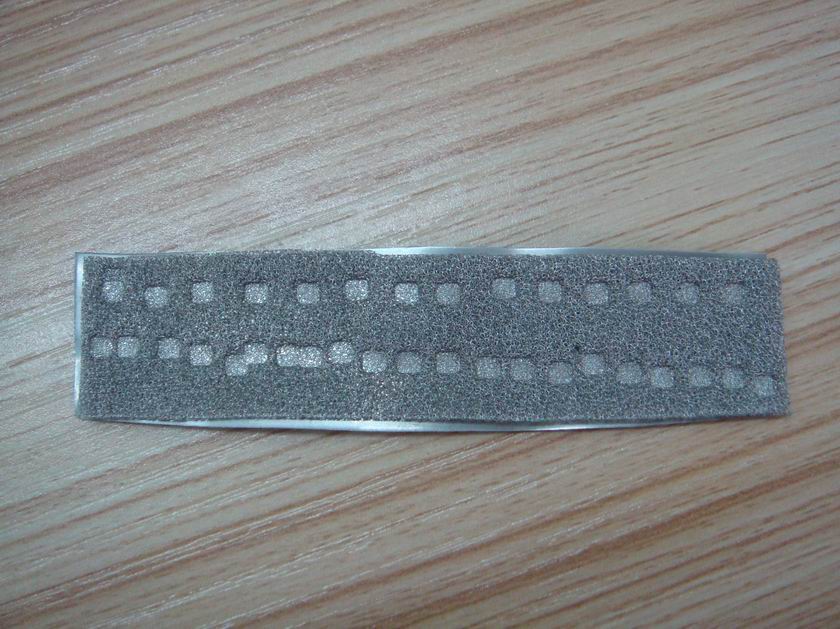

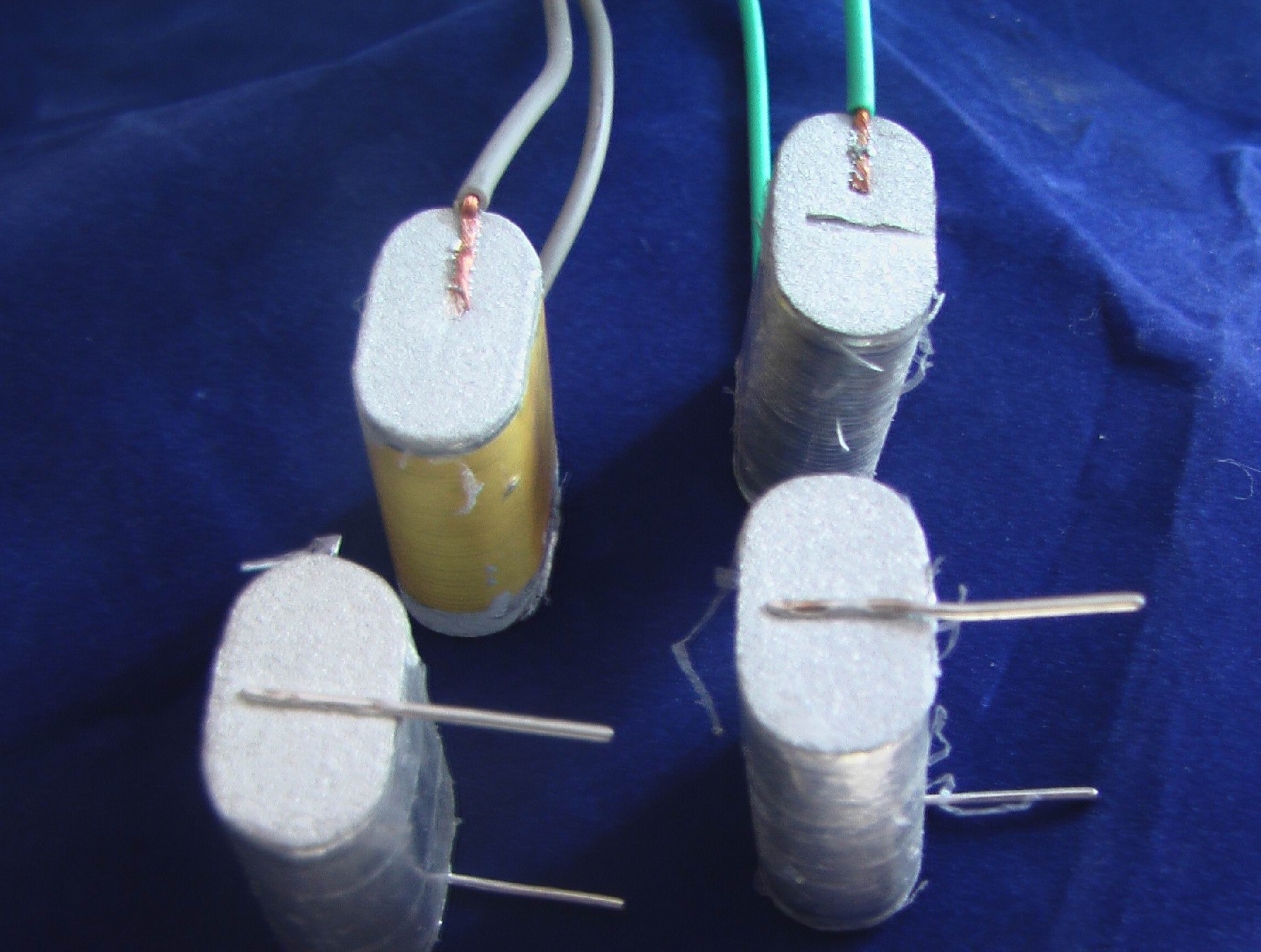

Foam nickel weld stainless steel.  Resistance Rolling Spot Welding

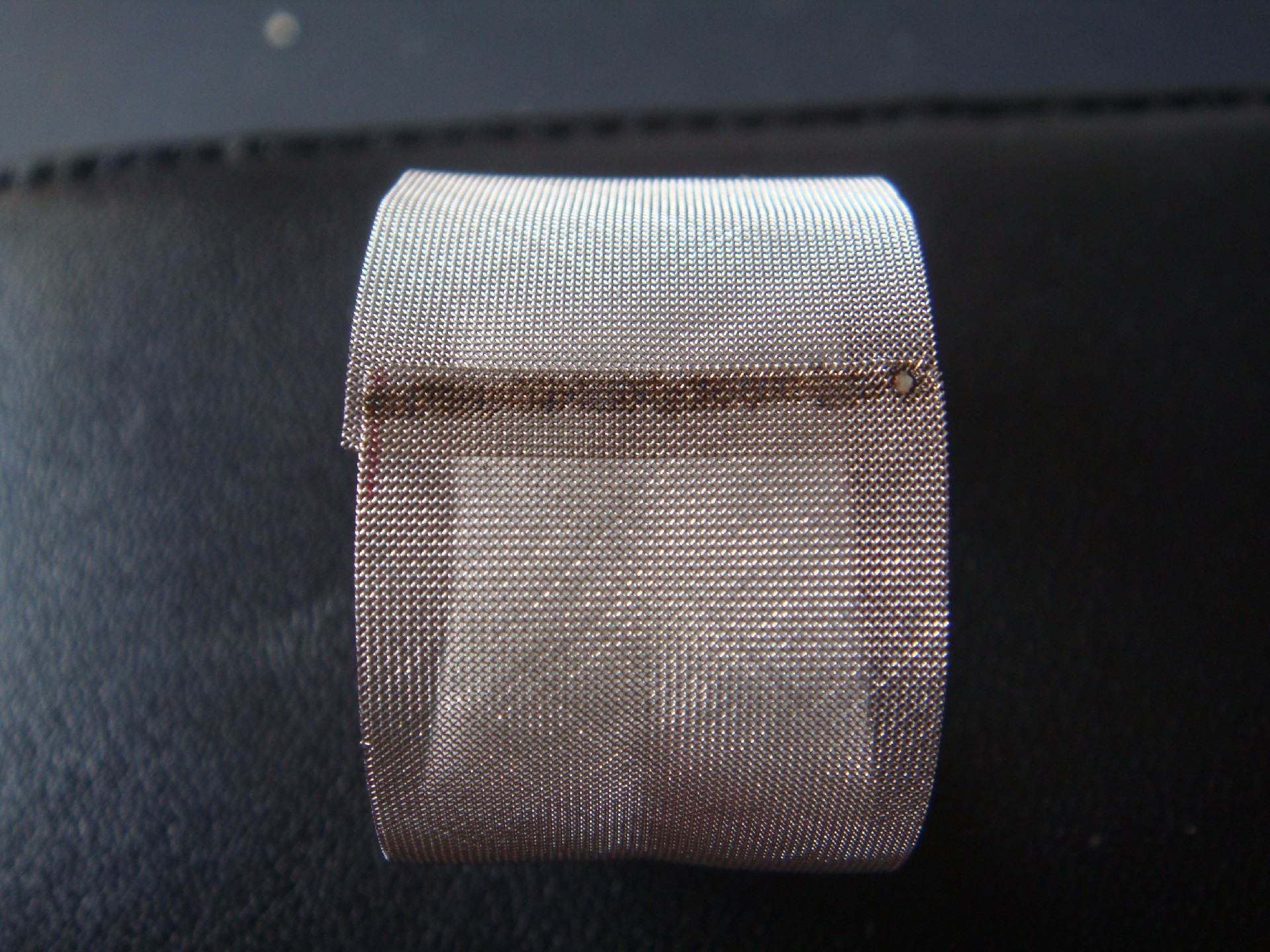

Stainless steel mesh welding. Rolling Welding or Spot Welding

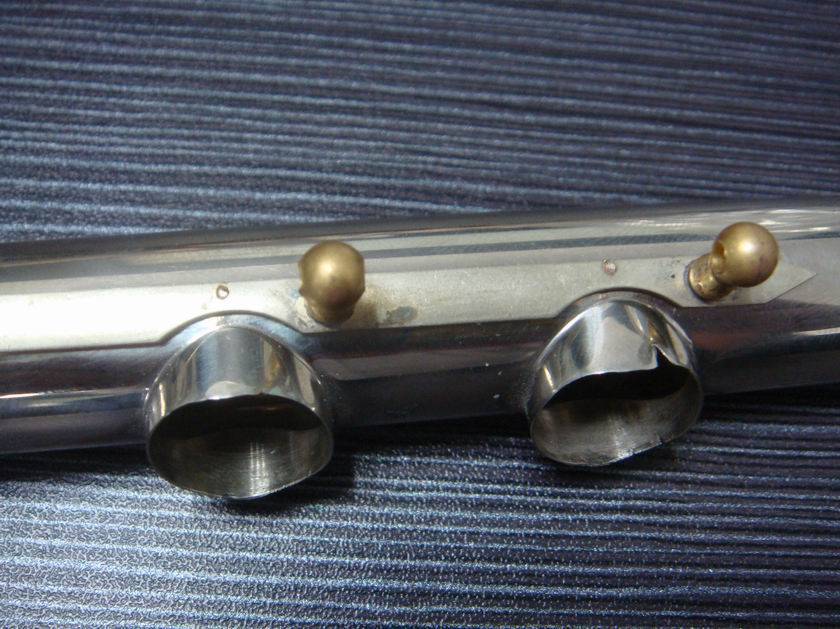

Stainless steel spot welding. Musical instrument

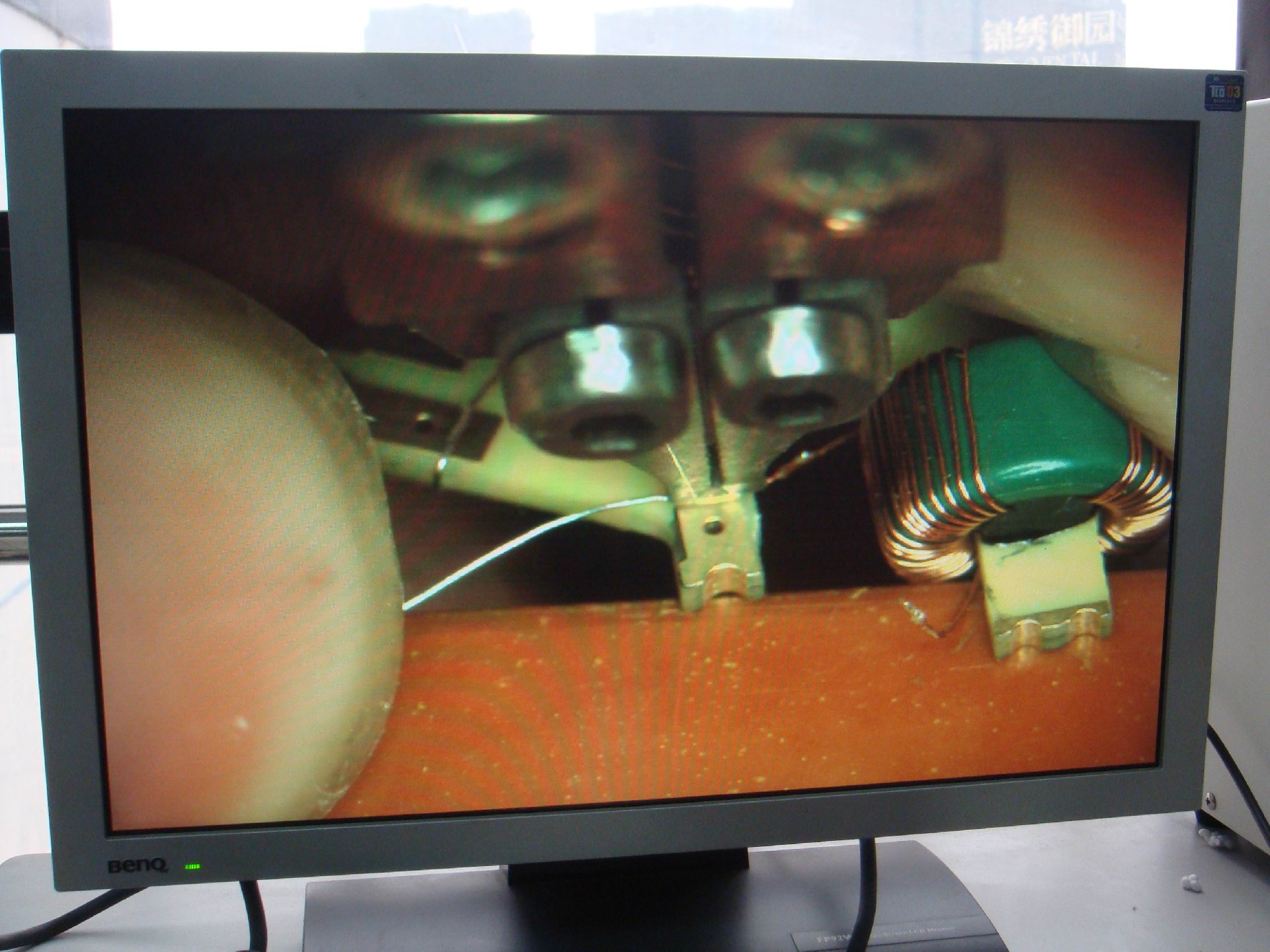

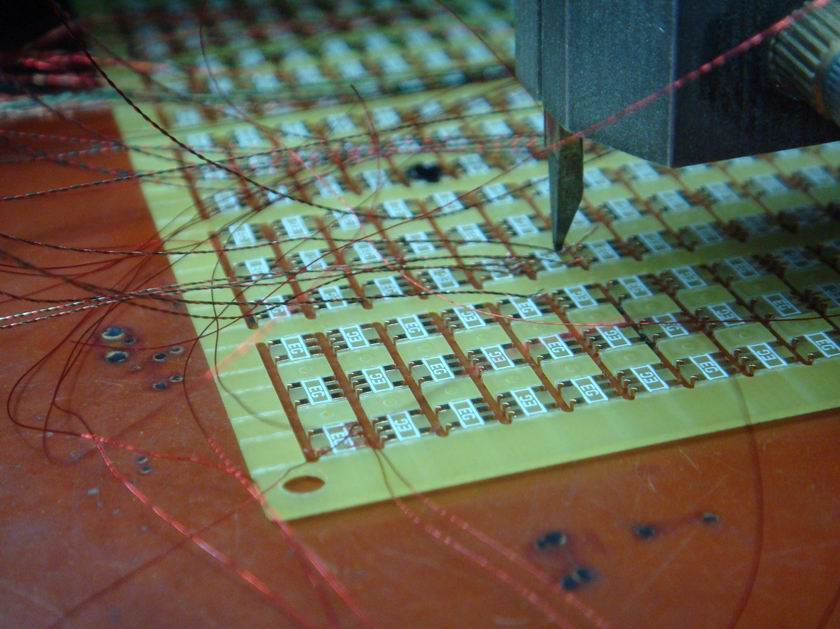

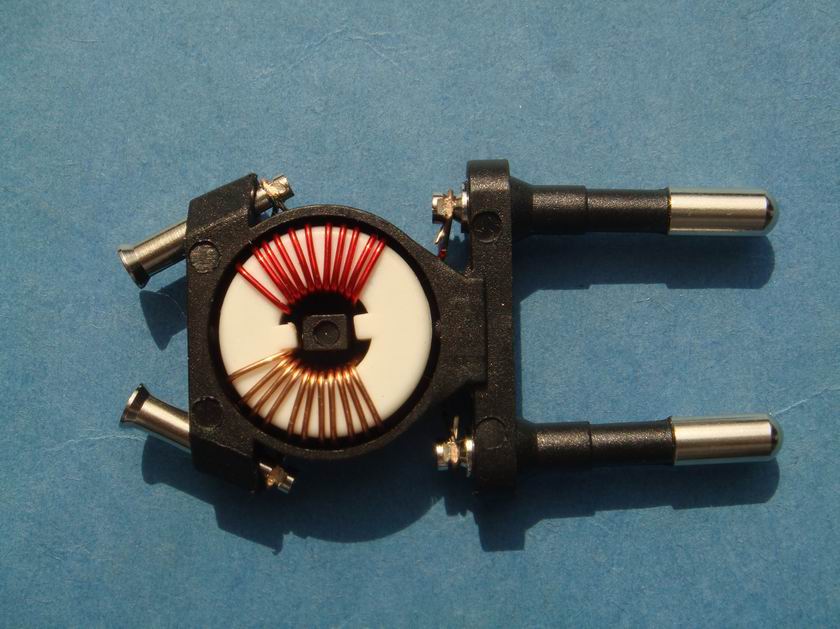

Coil wire welding

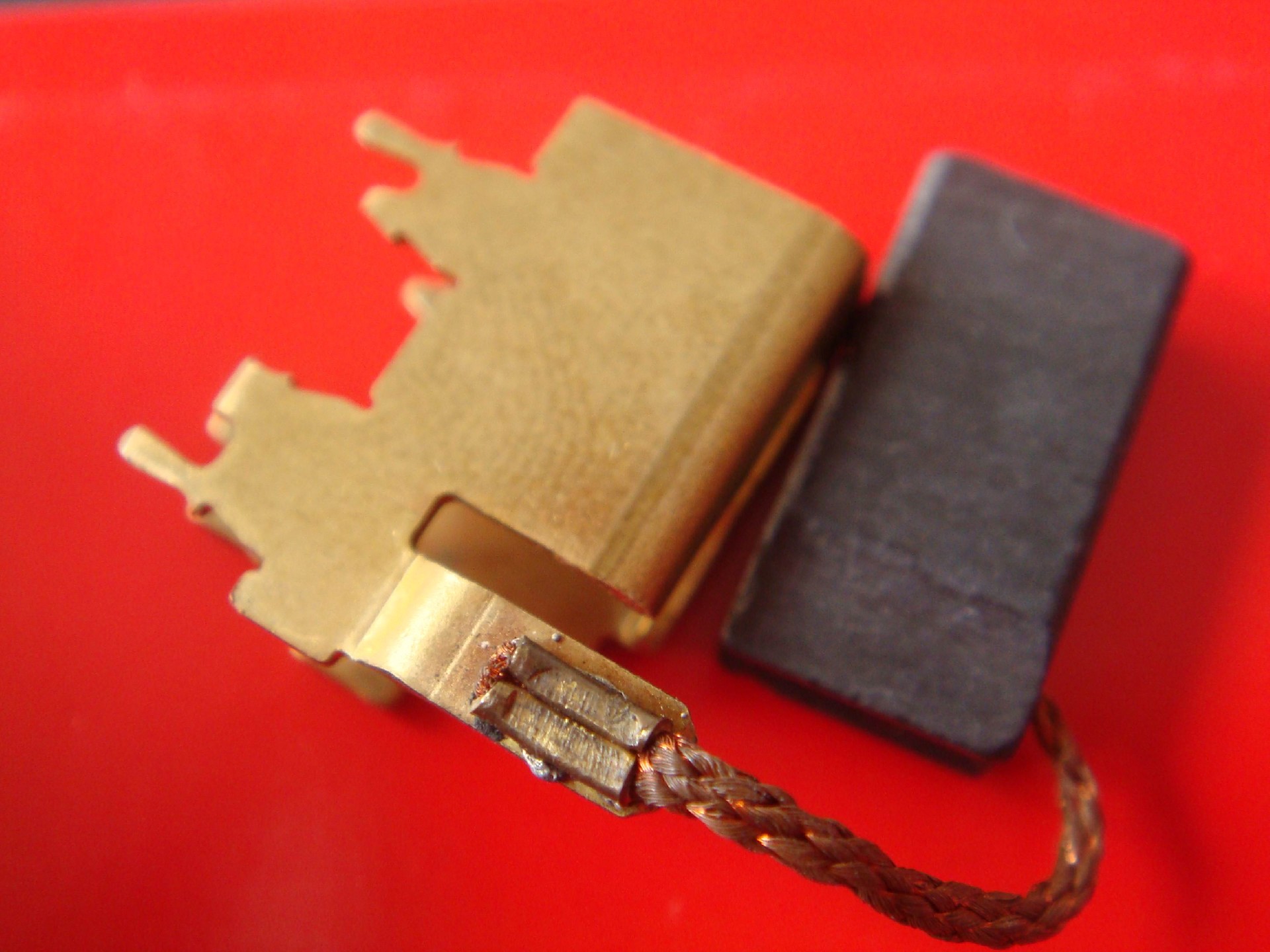

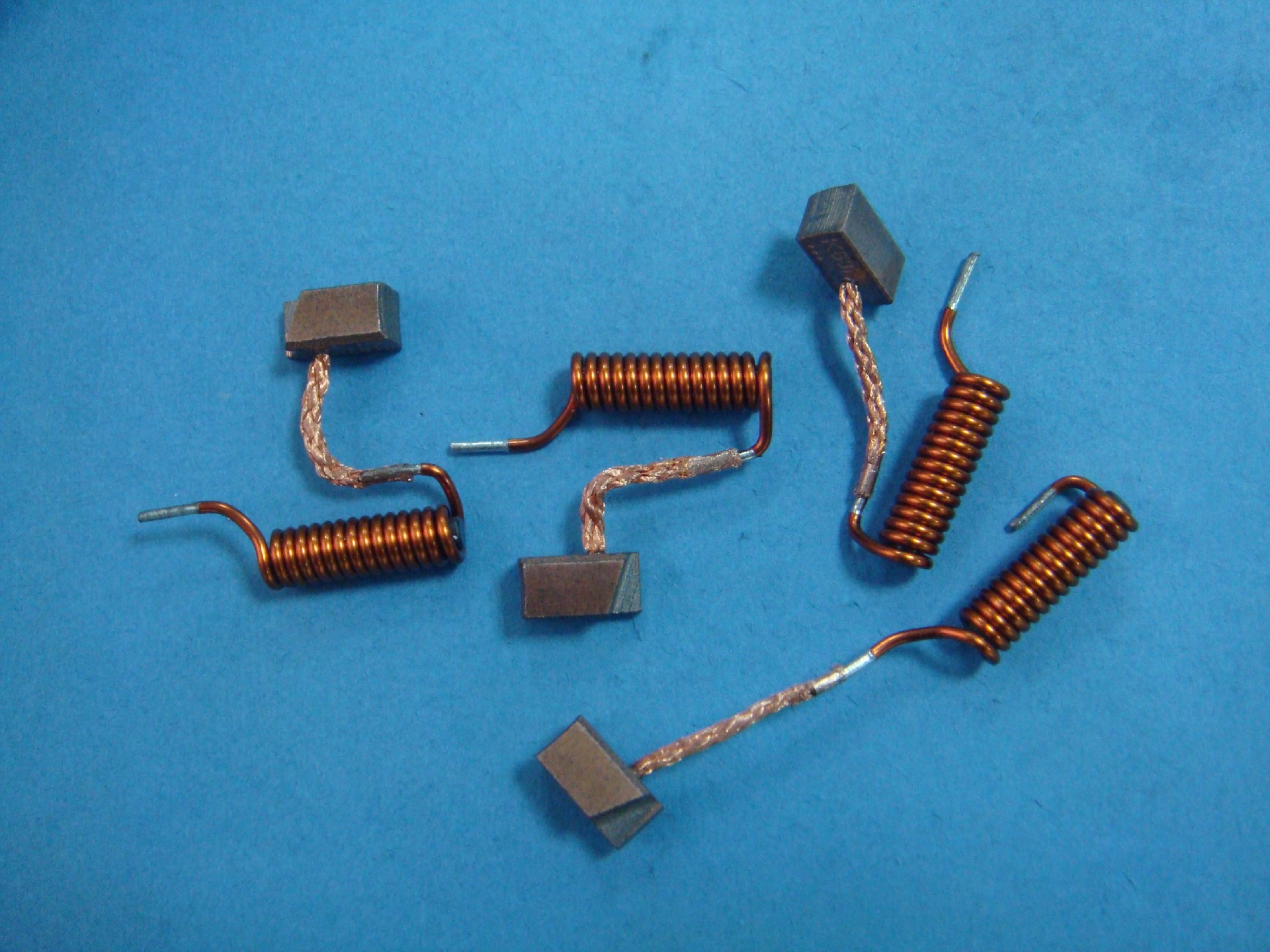

Motor carbon brush copper strip welding

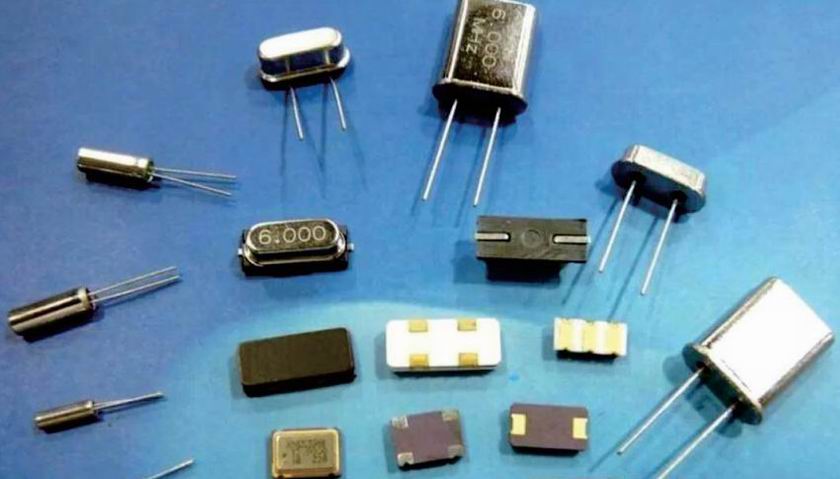

Other Electronic Components Welding

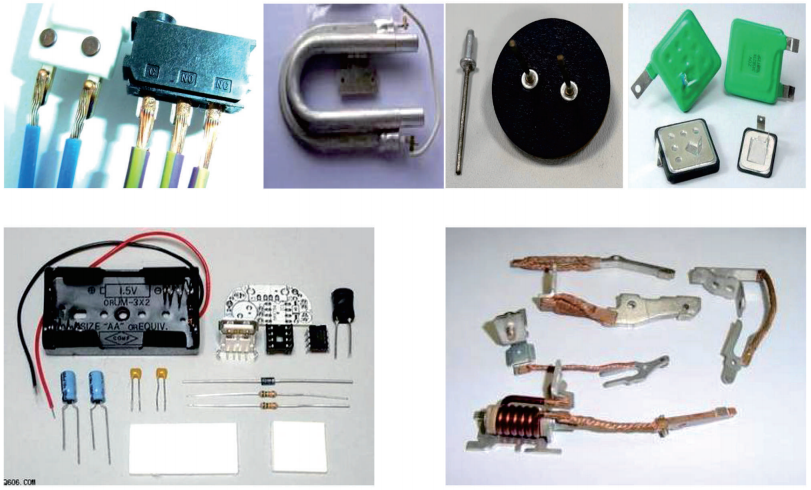

ShuoDe Weld TECH precision inverter DC spot welding machine is suitable for electronic components such as automotive electronics, inductors, resistors, capacitors, fuses, optoelectronic products, optical components, electric light sources, temperature controllers, filters, automotive components, precision hardware, small appliances, LED, Batteries, hearing aids, etc.

Sensors welding

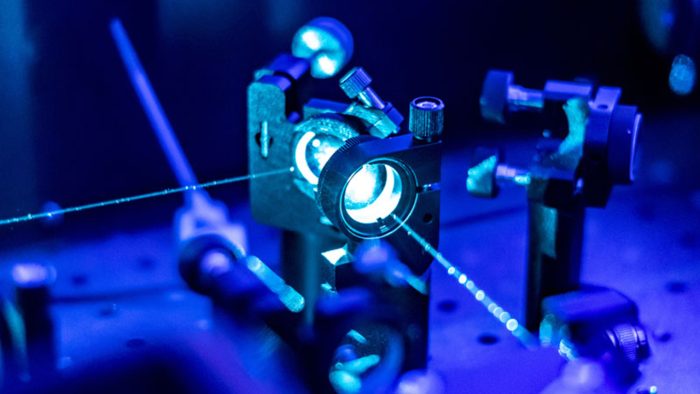

Optoelectronic products, optical components welding

In addition, ShuoDe Weld TECH also offers advanced laser welding, hot press reflow soldering, precision laser marking technology, etc. to meet market demand.

As of 2025, this type of equipment has been put into mass production and application in domestic micro motor production enterprises. The average annual welding volume of a single device can reach 1.5 million times, and the continuous working life of the equipment exceeds 8000 hours.
