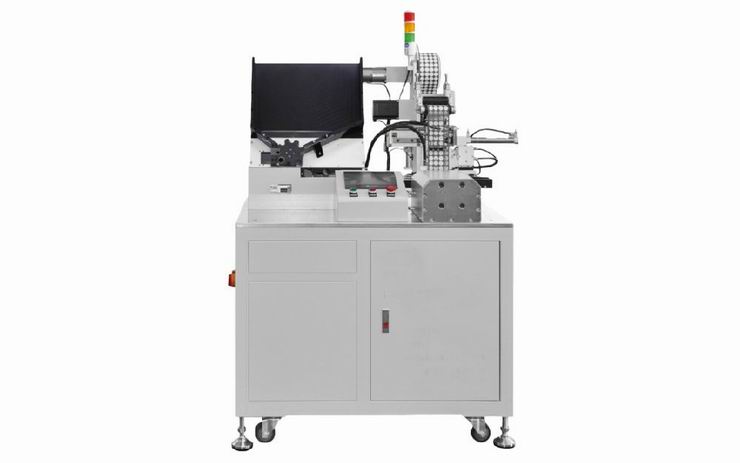

Cylinder Battery Automatic Pasting Barley Paper Machine

Cylinder Battery Automatic Pasting Barley Paper Machine

Technical features

●The battery material grabbing and positioning structure is specially designed to ensure accurate battery displacement and no battery jamming phenomenon.

●The stamping die is made of imported special alloy steel, with extremely professional processing, high wear resistance, long service life, and a three-year warranty without the need for replacement or sharpening; Accurate stamping and bonding, with a beautiful and consistent appearance on the battery bonding surface.

●The standard outer diameter of the surface pad is 17.8mm, which is 0.2mm larger than the same industry's 17.6mm and has better insulation effect.

●barley paper has a width of 84-84.5mm, which saves more material compared to peers who use 100mm.

●High equipment utilization rate ≥ 98%, qualification rate ≥ 99.5%;

●The production capacity efficiency can reach 6000-7000 PCS/hour, and the efficiency and stability compete with industry standards.

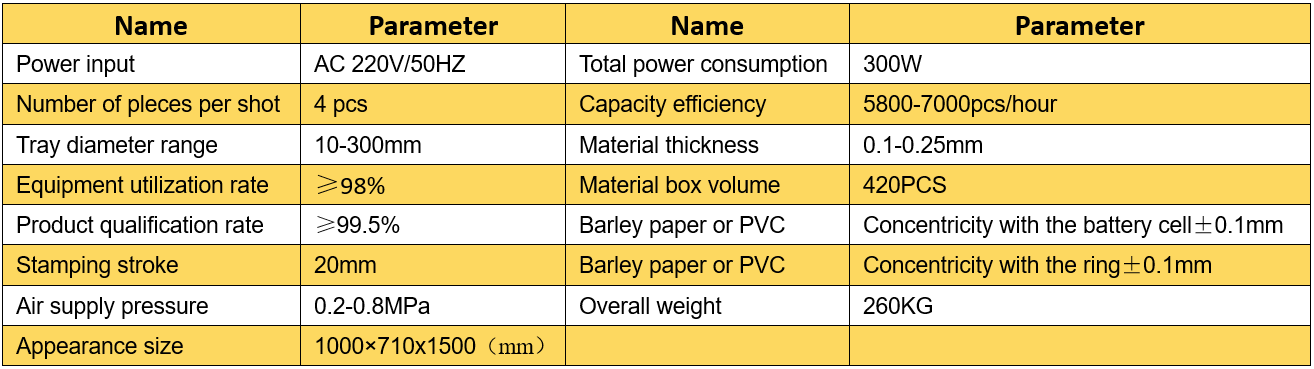

Main parameters
