The lithium battery pack production line is a key hub connecting battery cells and terminal applications, and its level of automation directly determines battery safety and production efficiency. From laser welding with a precision of 0.02mm to AI quality inspection with an accuracy of 99.7%, leading enterprises are breaking through the ultra high speed production of 30 seconds per set, and automation level will become the core competitiveness of enterprises in the next five years. "

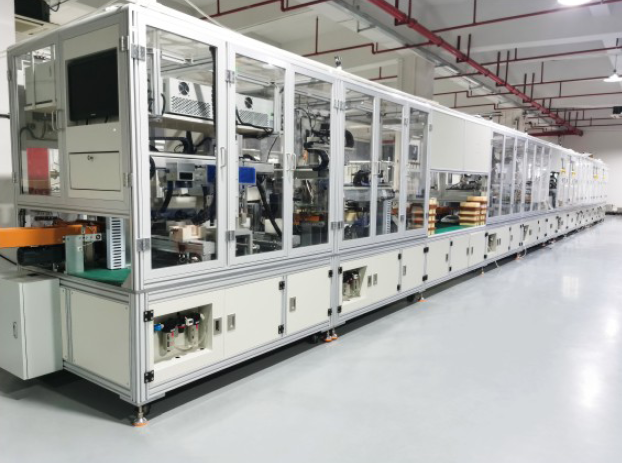

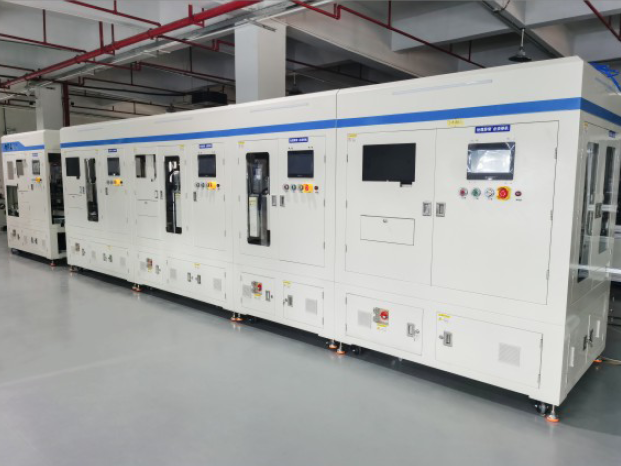

In the field of lithium-ion battery production and manufacturing, the battery pack assembly production line refers to a complete production line that assembles battery cells into battery modules and packs through automated equipment. This link is a key hub connecting battery cell manufacturing and terminal applications, and its technological level and automation directly determine the safety, consistency, and production efficiency of battery products. With the explosive growth of the global new energy vehicle and energy storage markets, the large-scale introduction of automation equipment in lithium battery factories has become an inevitable choice for industry development.
Core functions and technical composition of battery pack production line
The battery pack production line mainly undertakes three core tasks:
1. Cell sorting and pairing
The voltage, internal resistance, capacity and other parameters of the electric core are fully checked by high-precision testing equipment, and the machine learning algorithm is used to realize dynamic sorting, so as to ensure that the performance difference of the electric core in the same module is controlled within ± 1%. For example, BYD's "Six Sigma" sorting system can achieve a detection speed of 300 battery cells per minute.
2. Automated assembly of modules
Including processes such as cell stacking, Busbar laser welding, and end plate fixation. The laser welding process requires a positioning accuracy of 0.02mm and a welding yield rate of over 99.98%. The visual guidance robot system used by CATL can dynamically correct the welding path within 0.5 seconds.
3. Pack system integration
It involves key steps such as installation of battery management system (BMS), assembly of high-voltage wiring harness, and air tightness testing. The Tesla 4680 battery pack line integrates a 48 hour helium leak detection process, with a leak detection sensitivity of 10 ^ -6 mbarl/s.
2、 Analysis of the Necessity of Automation Equipment
1. Quality consistency requirements
Manual operation is difficult to meet the assembly accuracy of 0.1mm level for power batteries, while automated equipment can control the thickness tolerance of the module within ± 0.3mm. According to data from Guoxuan High Tech, after introducing a fully automatic Pack line, the battery pack failure rate decreased from 0.8% to 0.02%.
2. Security risk control
The production of lithium batteries involves hazardous processes such as high-voltage testing (3000V withstand voltage testing) and high-temperature technology (80 ℃ hot pressing molding). The unmanned workshop of Honeycomb Energy achieves 100% substitution of high-risk processes through AGV material transportation and collaborative operation of robotic arms.
3. Demand for large-scale production
The production capacity of a single automated pack line can reach 200000 sets per year, which is five times that of a manual line. The beat time of the Pack line at Xiaopeng Motors' Zhaoqing base has been compressed to 45 seconds per set, resulting in a 300% increase in efficiency compared to traditional production lines.
4. Full lifecycle traceability
Through the linkage between MES system and automation equipment, over 200 process parameters of each battery cell can be recorded. The traceability system of GAC Aion can locate the production data of any battery pack within 10 seconds, greatly improving the speed of after-sales response.
